· Veronica VHL Semi-Automatic Hand Load Cartoner
· AFFORDABLE - Simplified Servo technology
· Quick Size Changeover - Average 10 minutes
· Constant or Intermittent Motion







Photos which enlarge

Photos which enlarge
3" x 4" enlarged photo
Photos which enlarge
Photos which enlarge


ALL SERVO MOTION CONTROL

Seven Servomotors provide precise synchronization for carton feed-expansion and closure. No mechancial linkages to stretch, lubricate or re-set.



FEATURES:

·   SPEED: Variable to 160 CPM

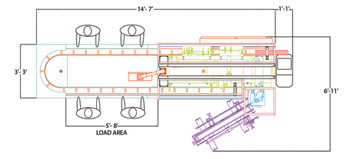

·   10' LOAD AREA: Space for 4 operators
·
  HIGH SPEED - SERVO DRIVEN - 2 Head Rotary Carton Feed
·
  Floor (4') long, horizontal powered carton magazine
·
  Digital HMI menu based touch screen operator control
·
  Nordson Pro Blue 7 series hot melt glue system
·
  Floor Chain carton transport conveyor with auto pitch adjustment
·
  Multiple pitch availability for Large Carton size page




SIZE RANGE:

6" PITCH
9" PITCH
12" PITCH

MIN.
1 1/2" x 3/4" x 3 5/8"
2" x 3/4" x 3 5/8"
3" x 1" x 3 5/8"
MAX.
4 1/2" x  3"   x 10"
7 1/2" x 3" x 10"
10" x 4" x 10"
